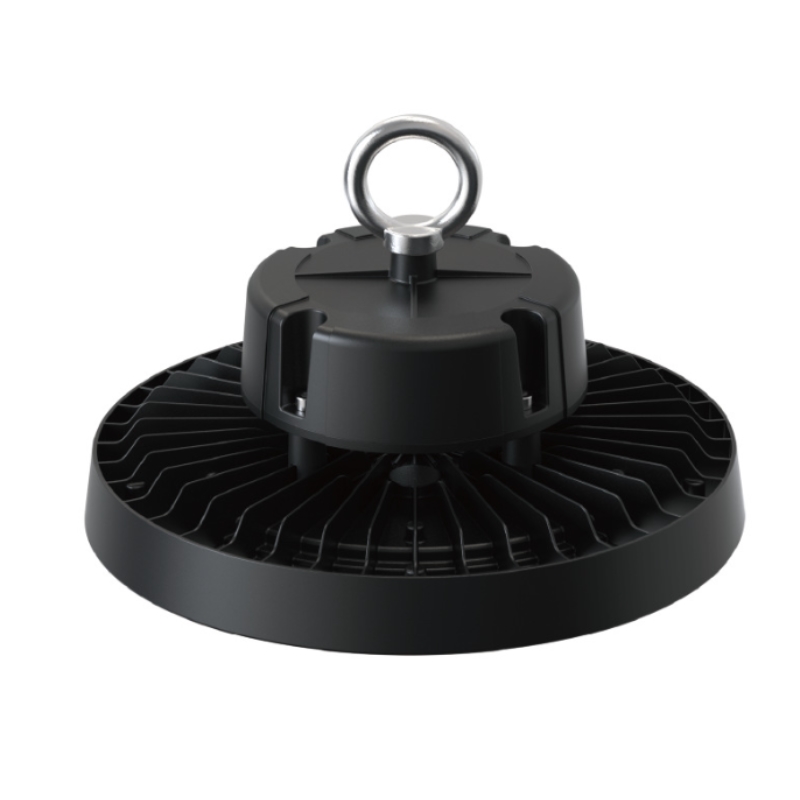

HYFD6 UFO-Style Factory Light
Product introduction
power range
HYFD6-60W
HYFD6-100W
HYFD6-150W
HYFD6-200W
HYFD6-240W
HYFD6-300W
HYFD6-400W
Products
From the professional concept-to the religious techniques
power range
HYFD6-60W
HYFD6-100W
HYFD6-150W
HYFD6-200W
HYFD6-240W
HYFD6-300W
HYFD6-400W
Technical data
No. | Name of parameter | Specifications Model parameter specifications（with Driver） | |||||||
1 | Model | FD6-100W | FD6-100W | FD6-150W | FD6-200W | FD6-240W | FD6-300W | FD6-400W | |
2 | Rated power | 60W | 100W | 150W | 200W | 240W | 300W | 400W | |
3 | Allowable operating voltage range | AC150-260V | AC150-260V | AC150-260V | AC150-260V | AC150-260V | AC150-260V | AC150-260V | |
4 | Luminaire efficiency | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | ≥95% | |
5 | Power factor PF | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | |
6 | Total harmonic distortion | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | ≤15% | |
7 | Electric strength | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | |
8 | Distribution Angle | 120°/90°/60° | 120°/90°/60° | 120°/90°/60° | 120°/90°/60° | 120°/90°/60° | 120°/90°/60° | 120°/90°/60° | Optional |
9 | CRI(color rendering index) Ra | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | ≥80/70 | Optional |
10 | Color temperature CCT | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | 5700±300K | Optional |
11 | Whole light effect (lm) | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | 115-160 | Optional |
12 | Operating ambient temperature | -20~40° C | -20~40° C | -20~40° C | -20~40° C | -20~40° C | -20~40° C | -20~40° C | |
13 | Life | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | 30000 hrs | |
14 | Lightning and surge protection rating | ≥6K | ≥6K | ≥6K | ≥6KV | ≥6KV | ≥6KV | ≥6KV | |
15 | IP Grade | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | |
